Pesado V2 HD High Diffusion Shower Screen - Breville 54mm

• Breville Barista Express (BES870, BES875)
• Breville Barista Pro (BES878)
• Breville Barista Touch (BES880, BES881)
• Breville Infuser (BES840)
• Breville Bambino (BES450)
• Breville Bambino Plus (BES500)

* Eliminates micro-channelling - 18 machined channels replace the unpredictable mesh design, directing water to the same zones every shot
* Full puck coverage - channels reach all the way to the basket edge, covering the 4–5mm perimeter zone the stock screen misses entirely
* Easier to dial in - consistent water distribution means grind adjustments produce predictable results, not random variation
* Sweeter, more balanced shots - even extraction means less over-extraction on one side and under-extraction on the other
* Less cleaning - the included 0.2mm contact mesh prevents grounds pushing up into the channels during extraction
* Five minute install - direct replacement for the stock screen, no special tools required

Installation - Breville 54mm

1. Unscrew the centre bolt and remove the stock shower screen from the grouphead.
2. Clean any residue from the grouphead - a full backflush before fitting is recommended.
3. Place the contact mesh against the HD shower screen with the mesh facing down toward the puck.
4. Screw the new screen into place using your existing bolt.
5. Run a rinse cycle before your first shot.

Under five minutes. No special tools required.
Watch the full install:
https://www.youtube.com/watch?v=G6W7XyqOhtk

Dialling In After Installation

After fitting the HD screen your existing grind setting may produce a faster or slower shot than before - this is normal. The more even water distribution changes how your puck extracts. Start from your current grind setting and adjust from there:

- Shot running too fast or weak - go finer on your grind
- Shot running too slow or bitter - go coarser
- Aim for a 1:2 ratio in 25–30 seconds (e.g. 18g in, 36g out)

Most people settle within 2–3 sessions. If you use a bottomless portafilter, the extraction pattern will make it immediately obvious when you've dialled in - look for a steady, centred flow with no spurting or channelling.

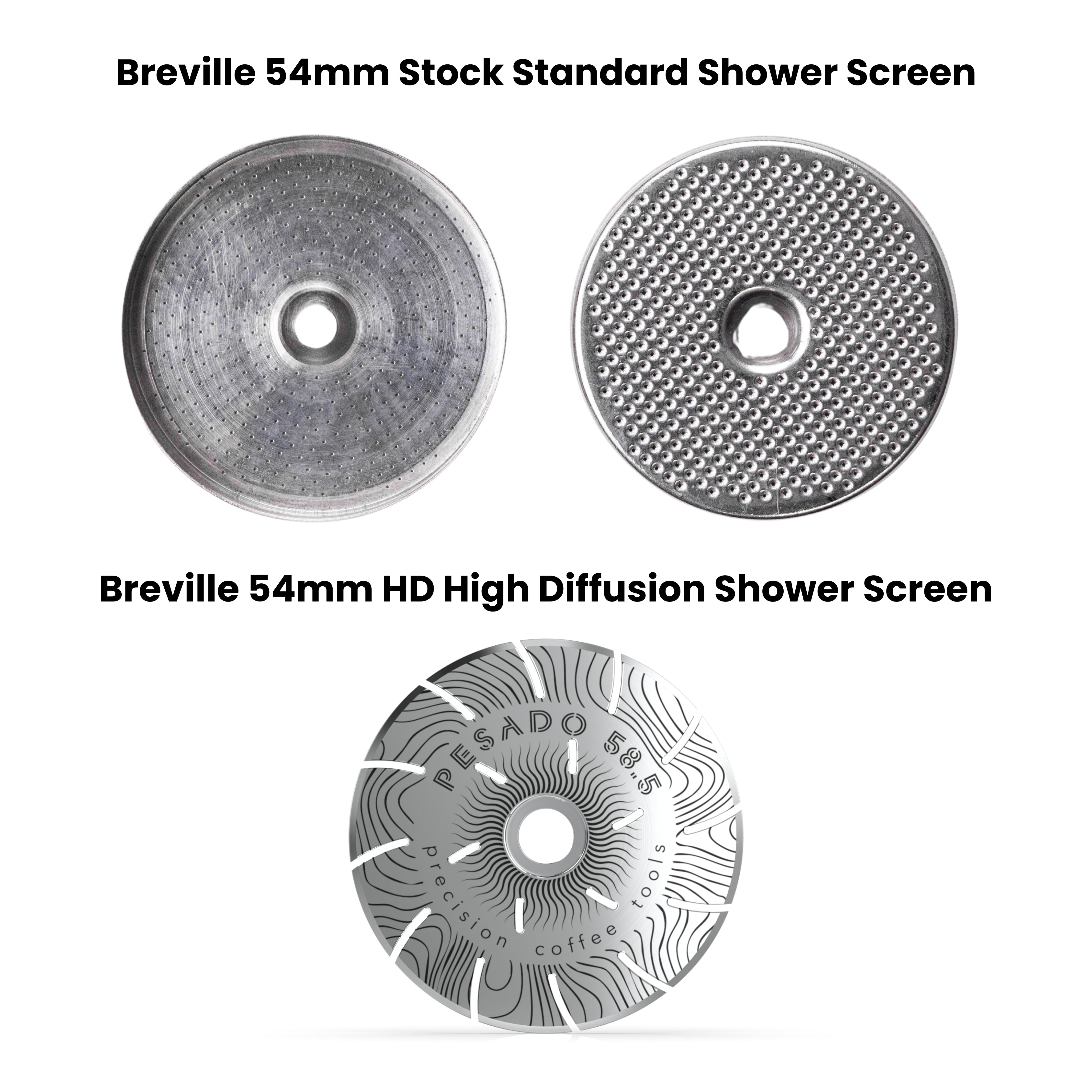

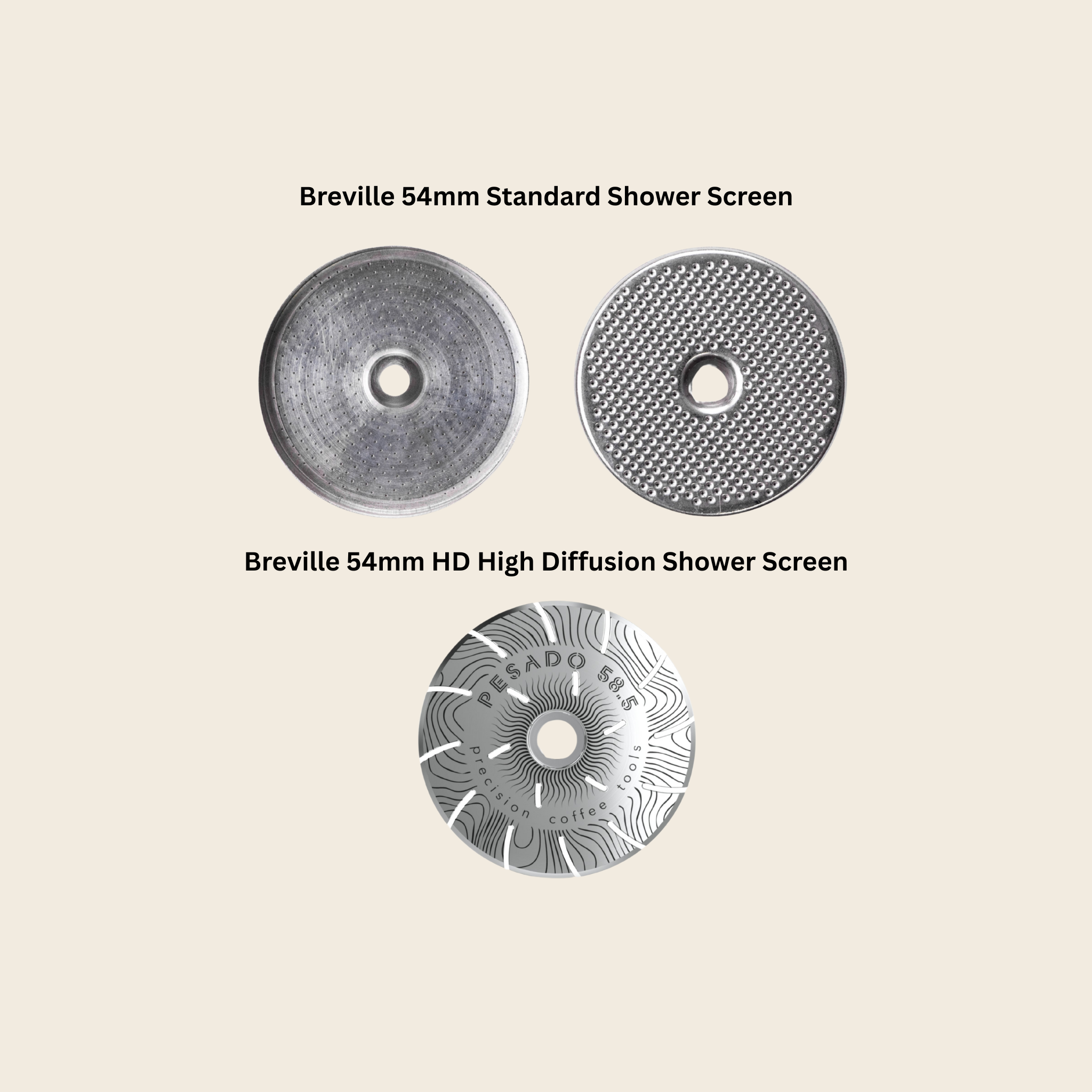

Why the Stock Breville Screen Has Limitations

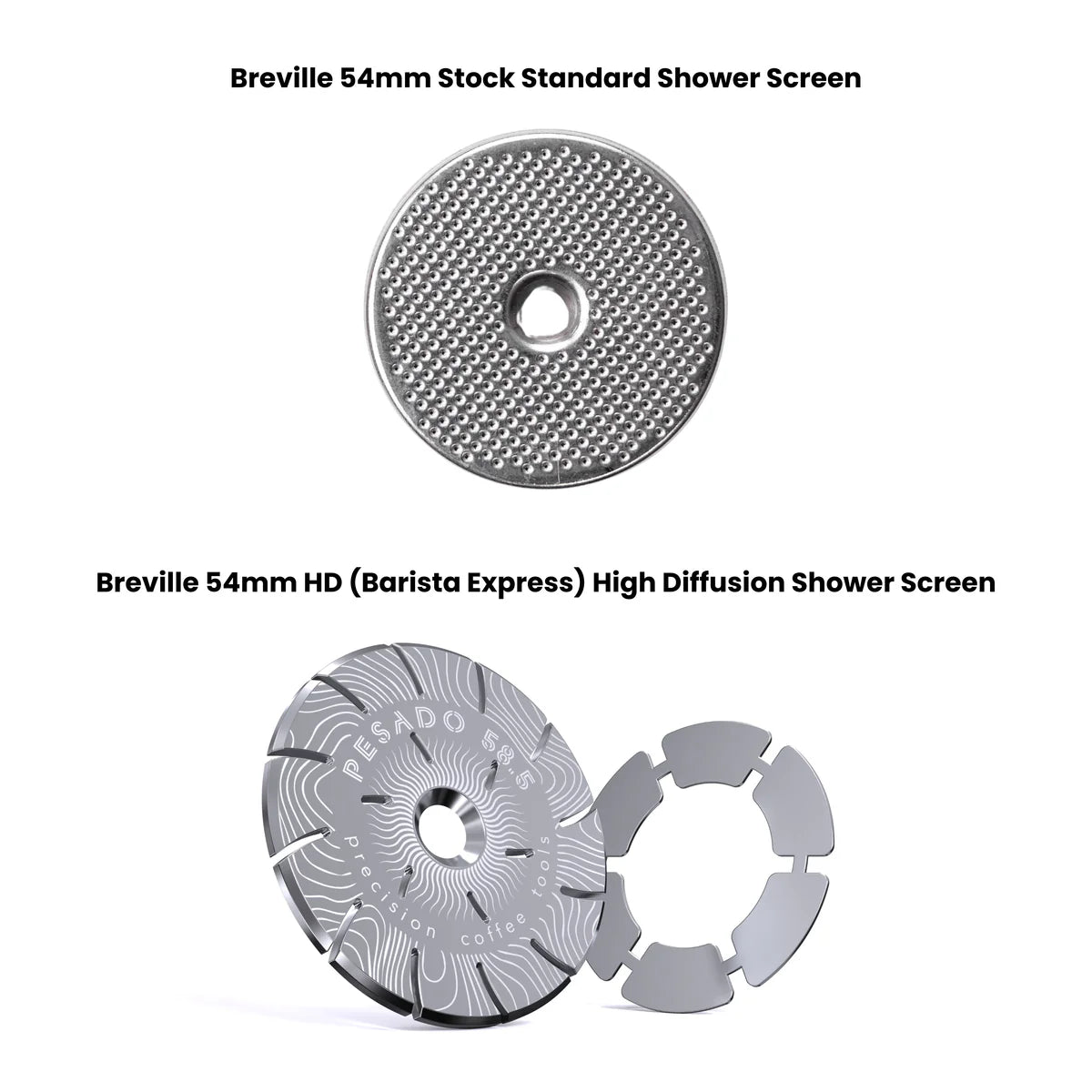

The shower screen that ships with Breville 54mm machines uses a traditional mesh design. Water flows through the mesh and tries to spread evenly before hitting the puck - but water is attracted to the mesh material itself, causing it to grip and follow the mesh rather than flowing in controlled, predictable paths. Every shot distributes slightly differently, creating inconsistency you can't dial out through grind or tamp adjustments alone.

There's also a coverage issue. The stock screen doesn't reach the full diameter of the basket. The outer 4 to 5mm ring of your puck consistently receives significantly less water than the centre - roughly 10 to 15% of the puck bed under-saturated on every extraction. This contributes to channelling along the basket wall and shots that are harder to get right than they should be.

What the Pesado HD V2 Does Differently

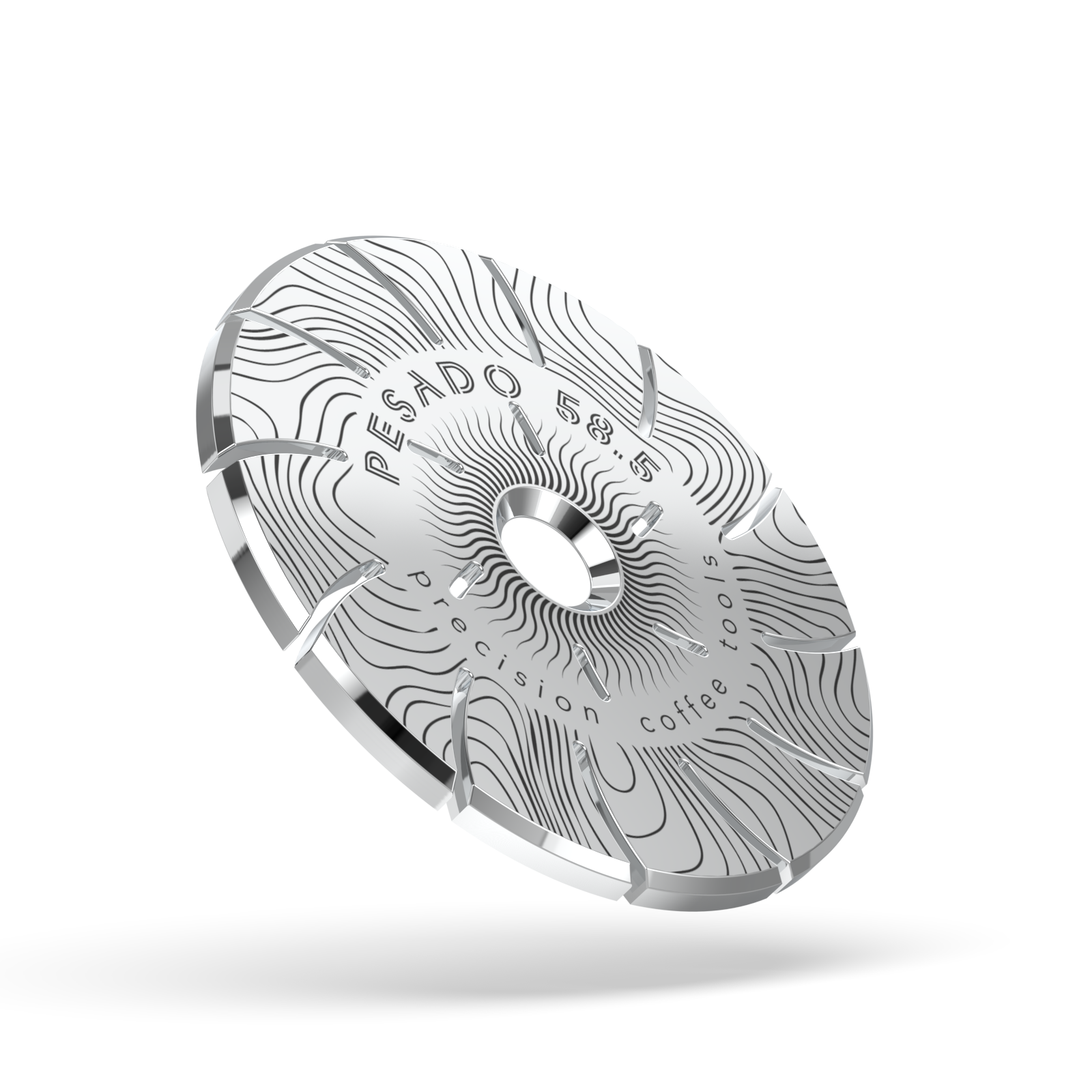

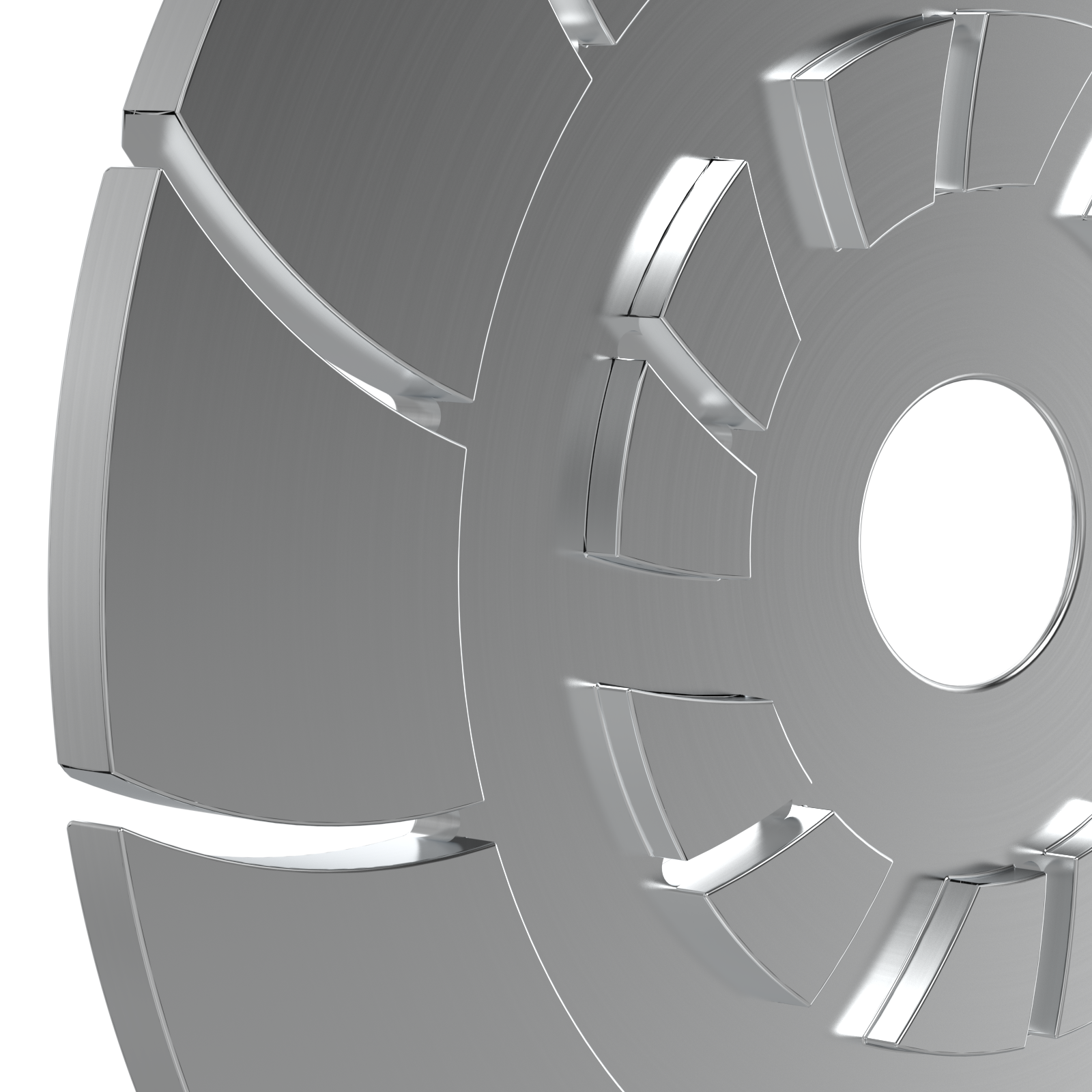

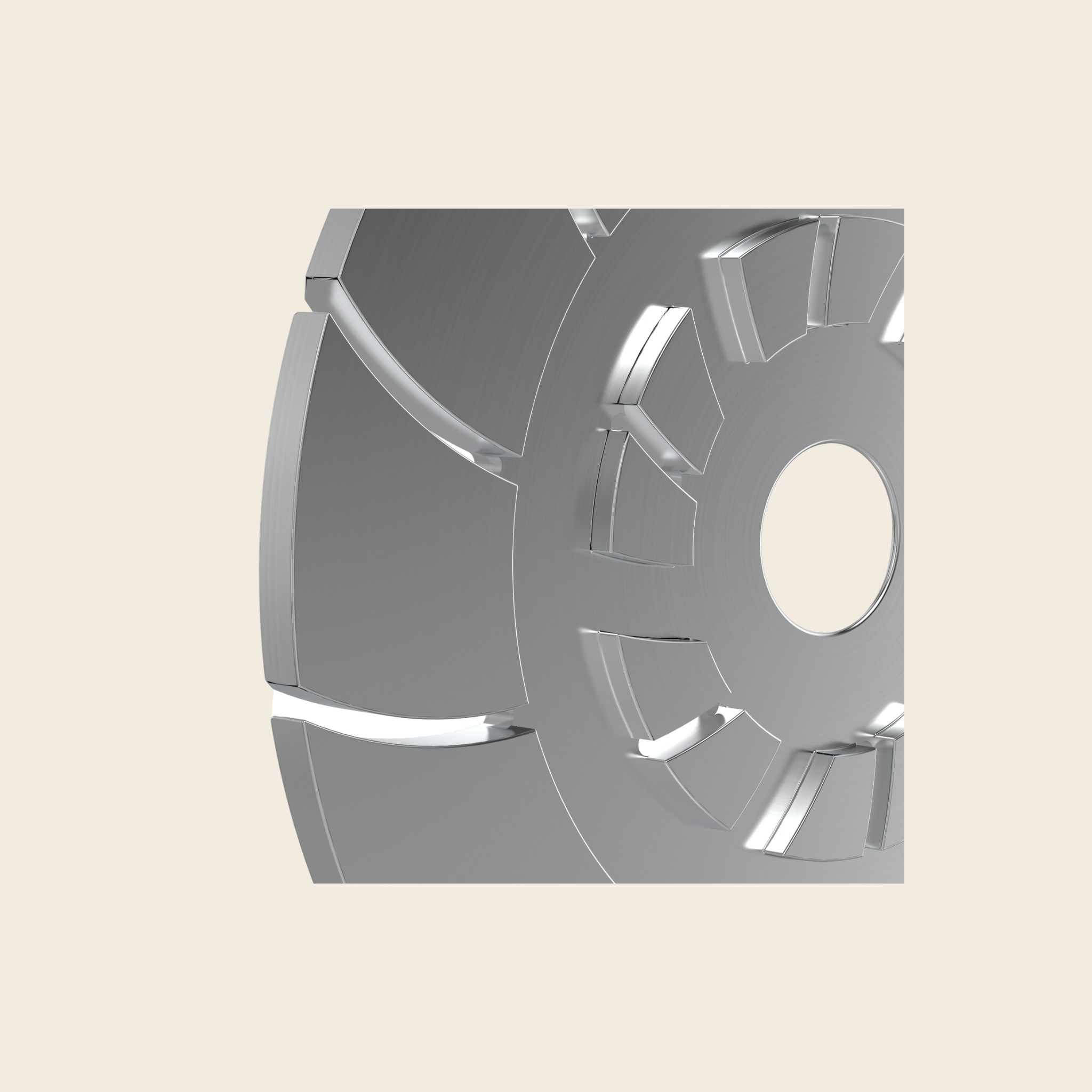

The HD replaces the mesh entirely with 18 precision-machined channels. Water is directed along specific engineered paths to targeted zones across the full puck surface - including right out to the basket edge. The result is the same 18 distribution points receiving water at the same flow rate, every single shot.

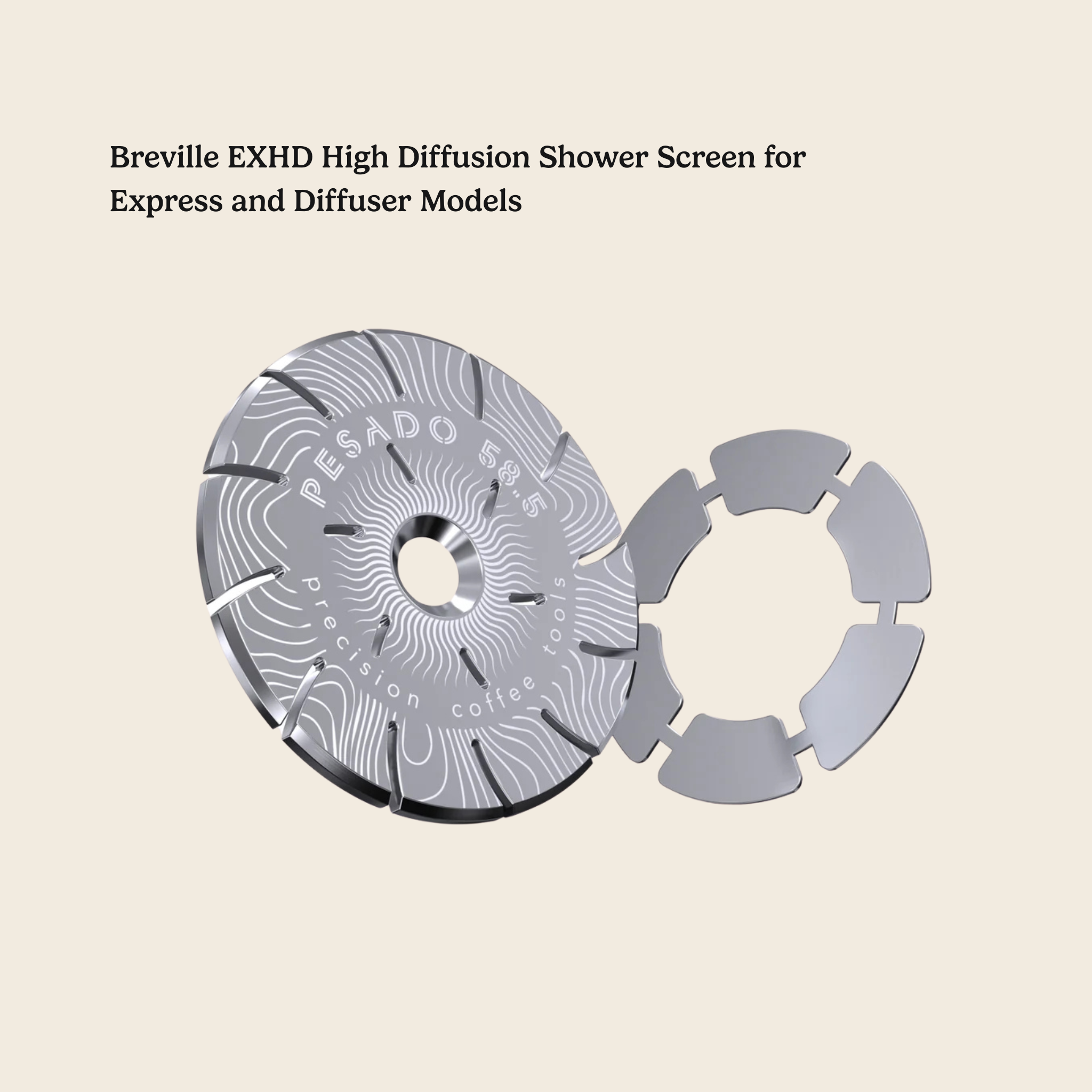

The V2 update introduced an improved integrated channel design that's now compatible with all Breville 54mm machines — including the Barista Express, Infuser, and Duo-Temp Pro, which have off-centred water entry points in the grouphead that earlier versions didn't fully account for.

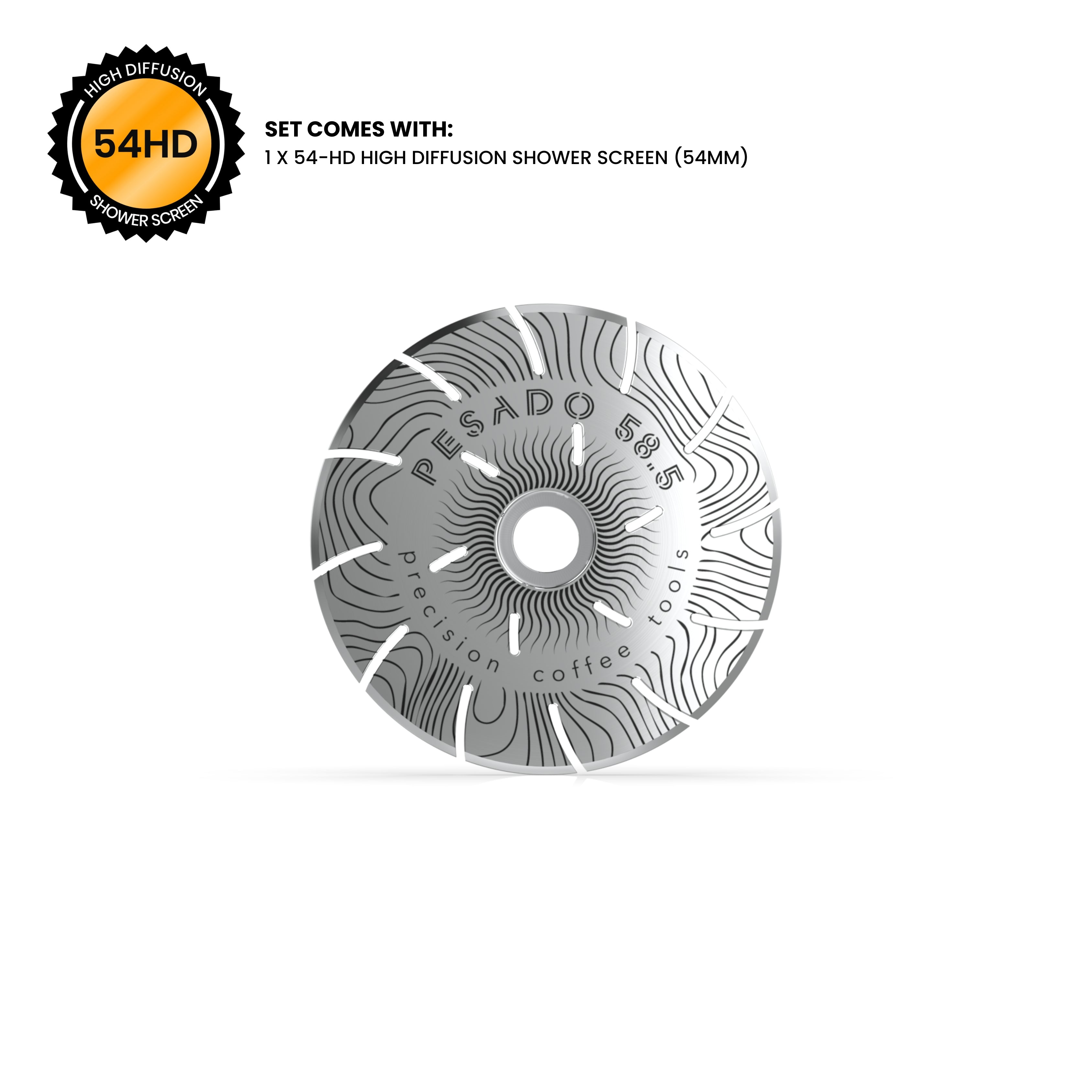

What's in the Box

• 1 x Pesado 54mm HD High Diffusion Shower Screen (54HD)
• 1 x 0.2mm Contact Mesh + Pin

You will need your existing shower screen bolt to install - not included.

Specs

Material: 304 Stainless Steel
Diameter: 53mm
Thickness: 2.6mm
Channels: 18
Basket compatibility: Double baskets only

Compatible with all Breville 54mm grouphead machines:

• Bambino (BES450)
• Bambino Plus (BES500)
• Barista Express (BES870)
• Barista Express Impress (BES876) - manual dose recommended
• Barista Pro (BES878)
• Barista Touch (BES880)
• Barista Touch Impress (BES881) - manual dose recommended
• Duo-Temp Pro (BES810)
• The Infuser (BES840)
• Sage equivalent models

Important: The BR54HD is compatible with double baskets only - not suitable for single shot baskets.

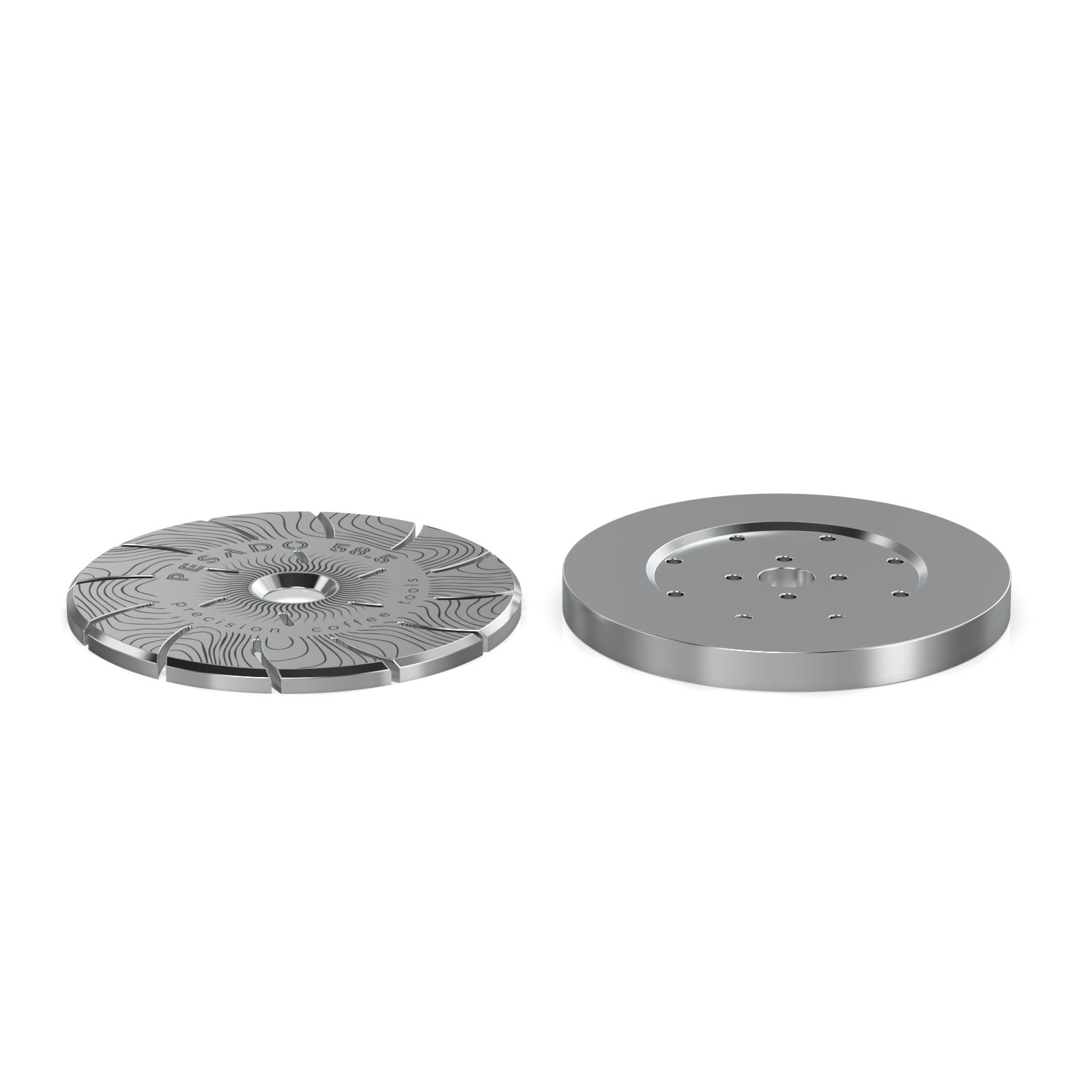

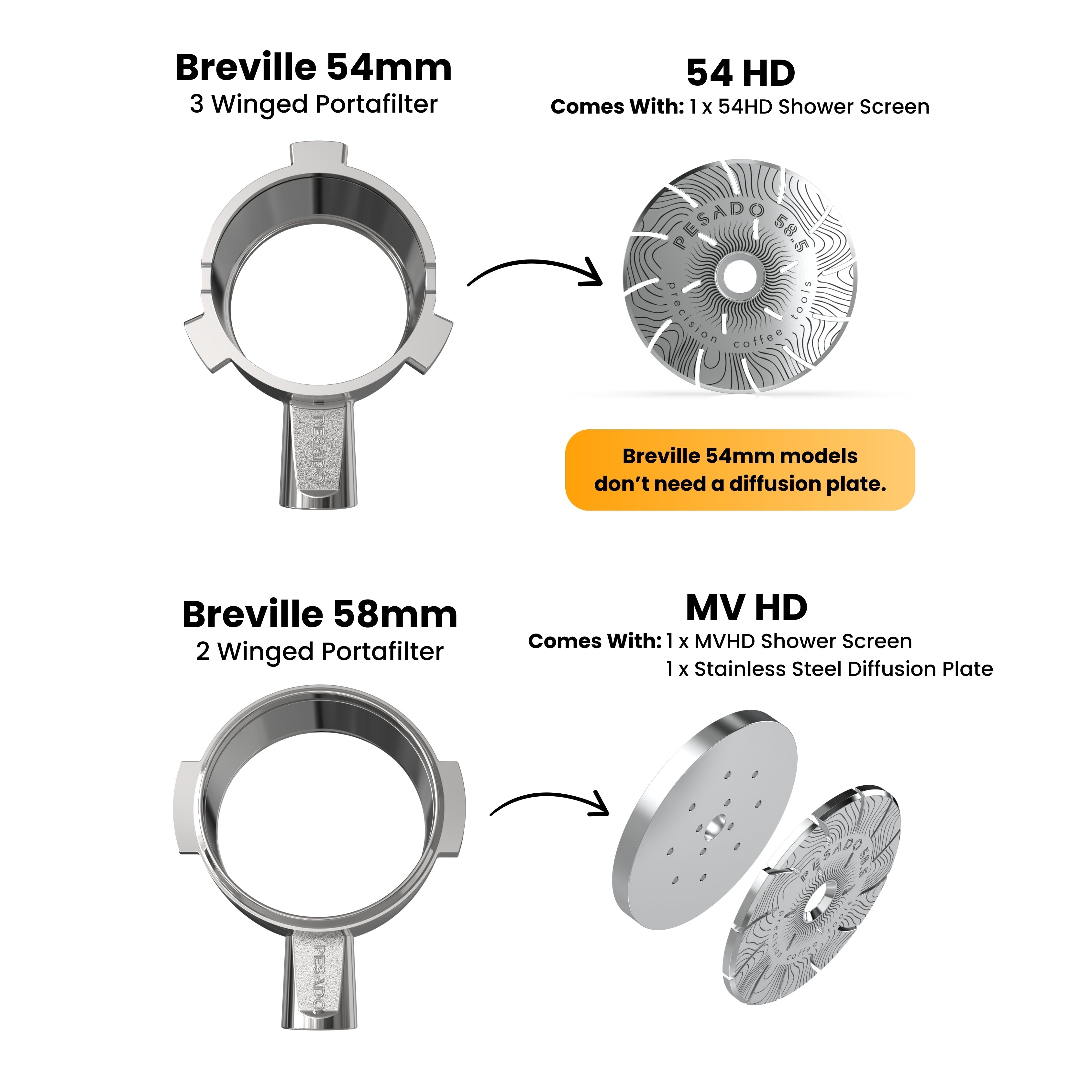

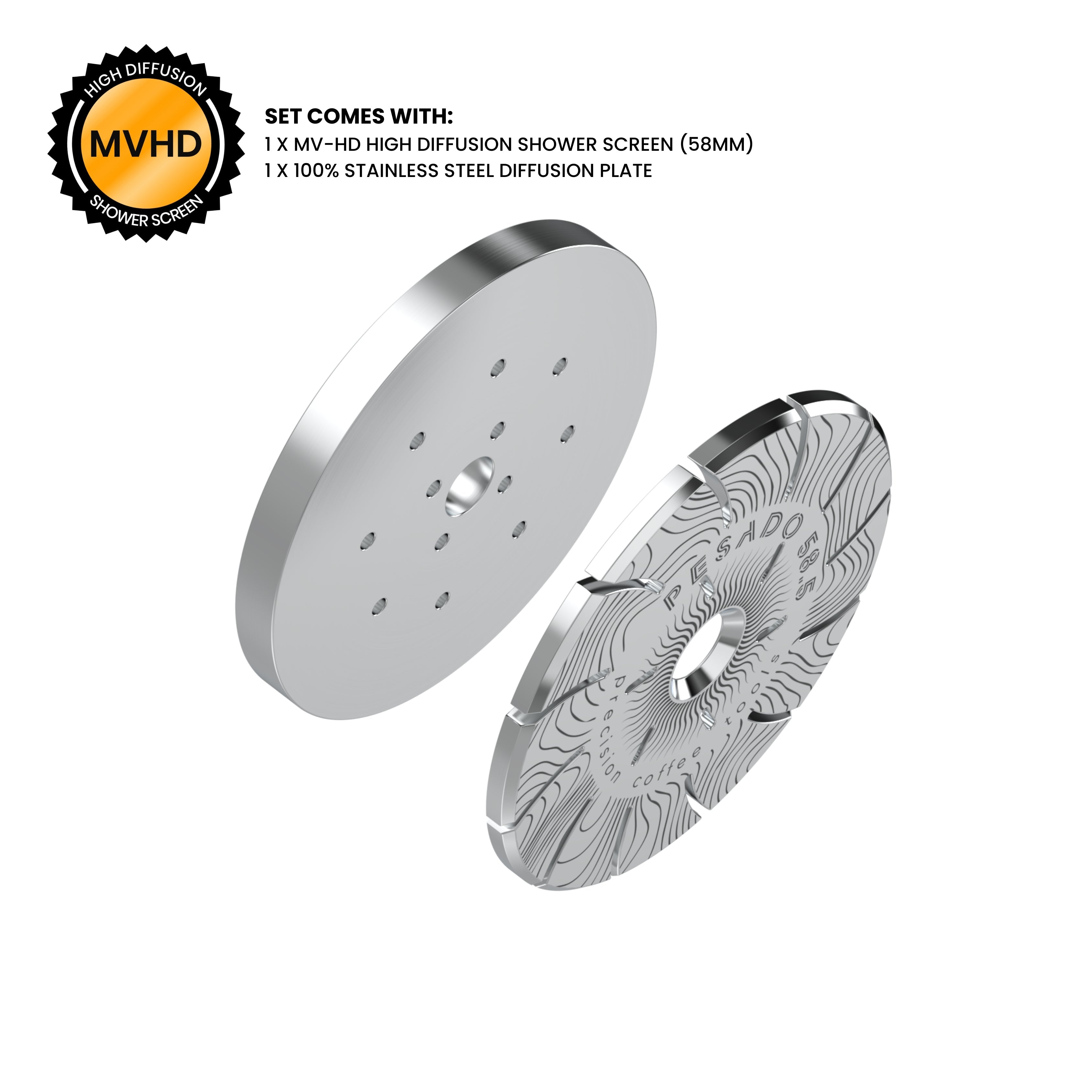

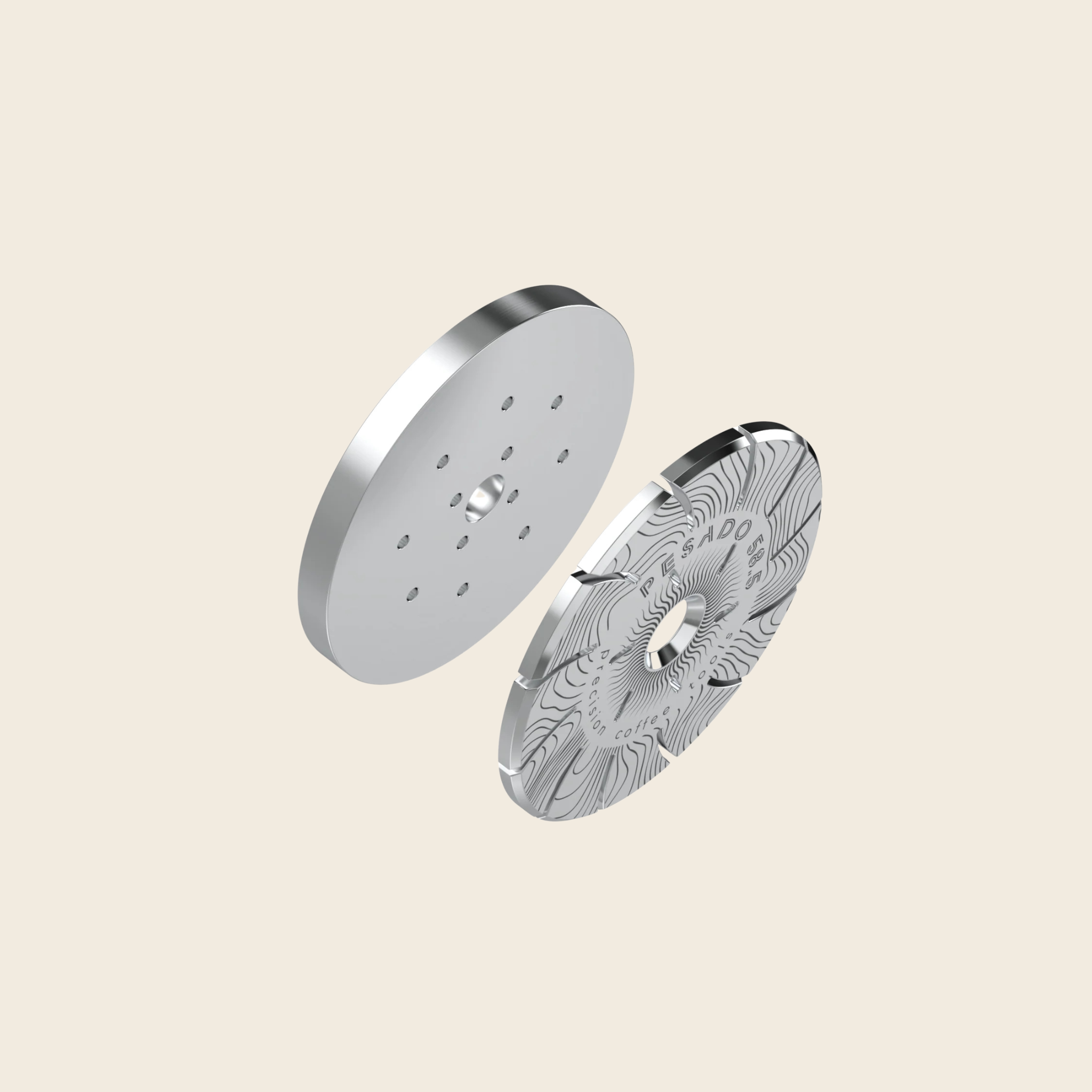

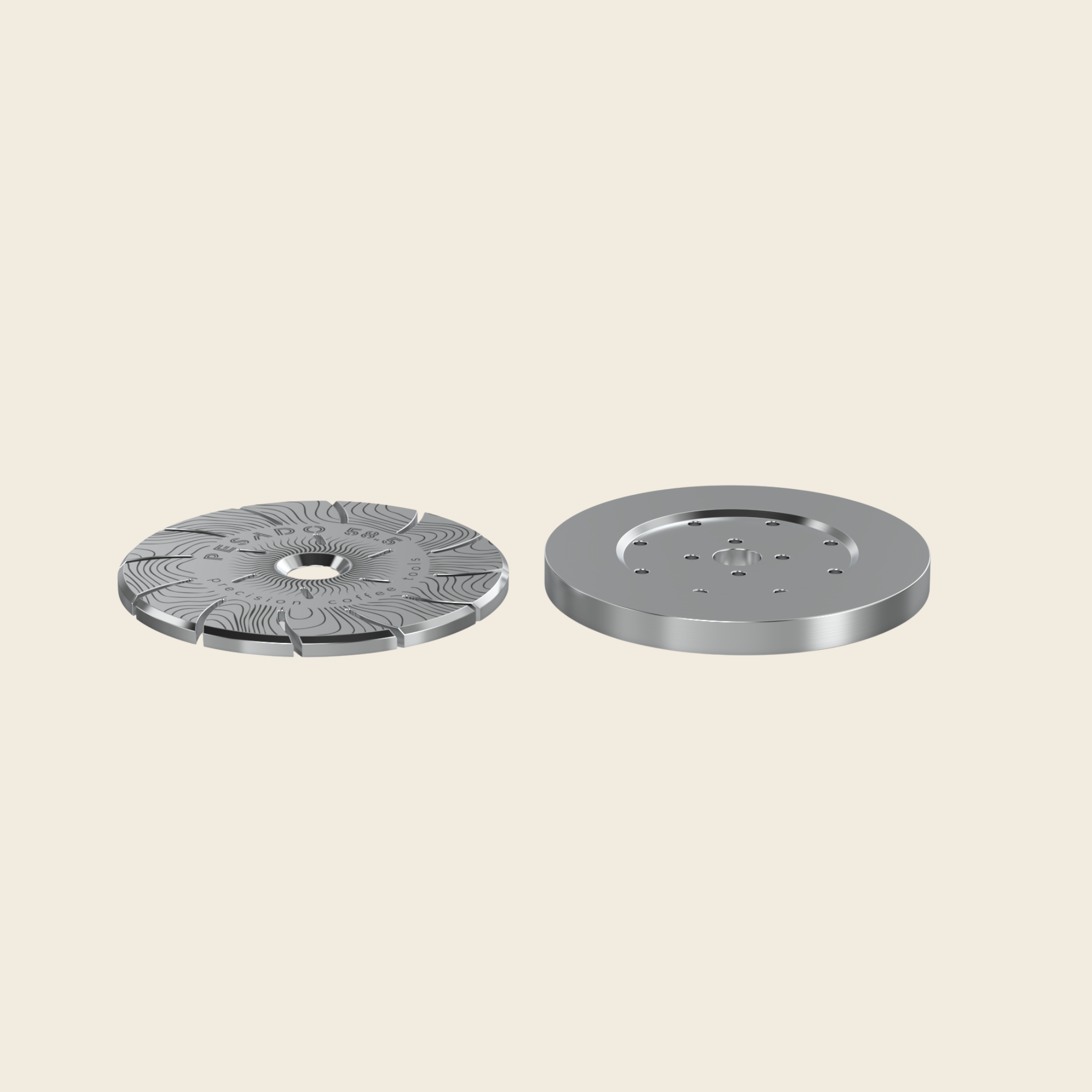

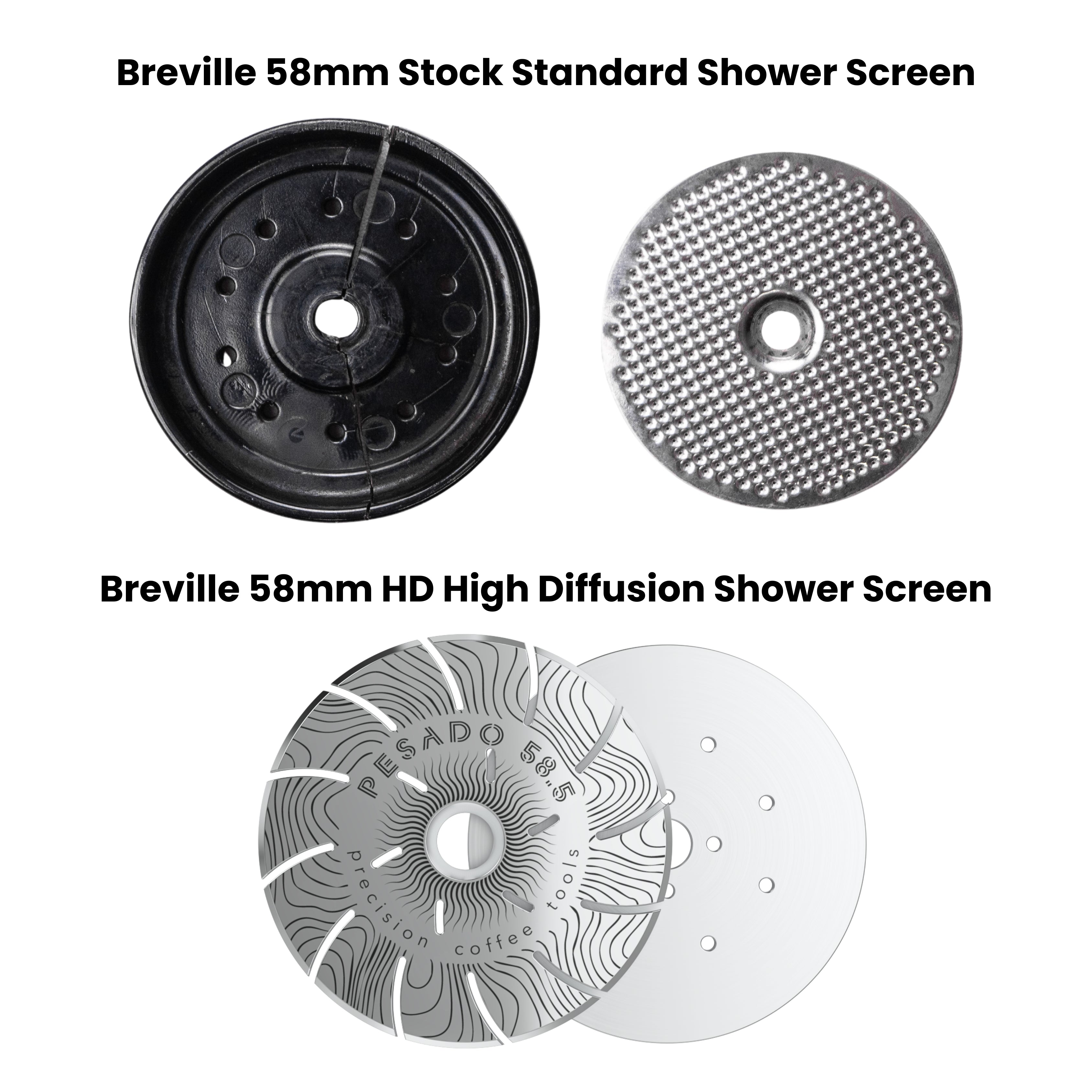

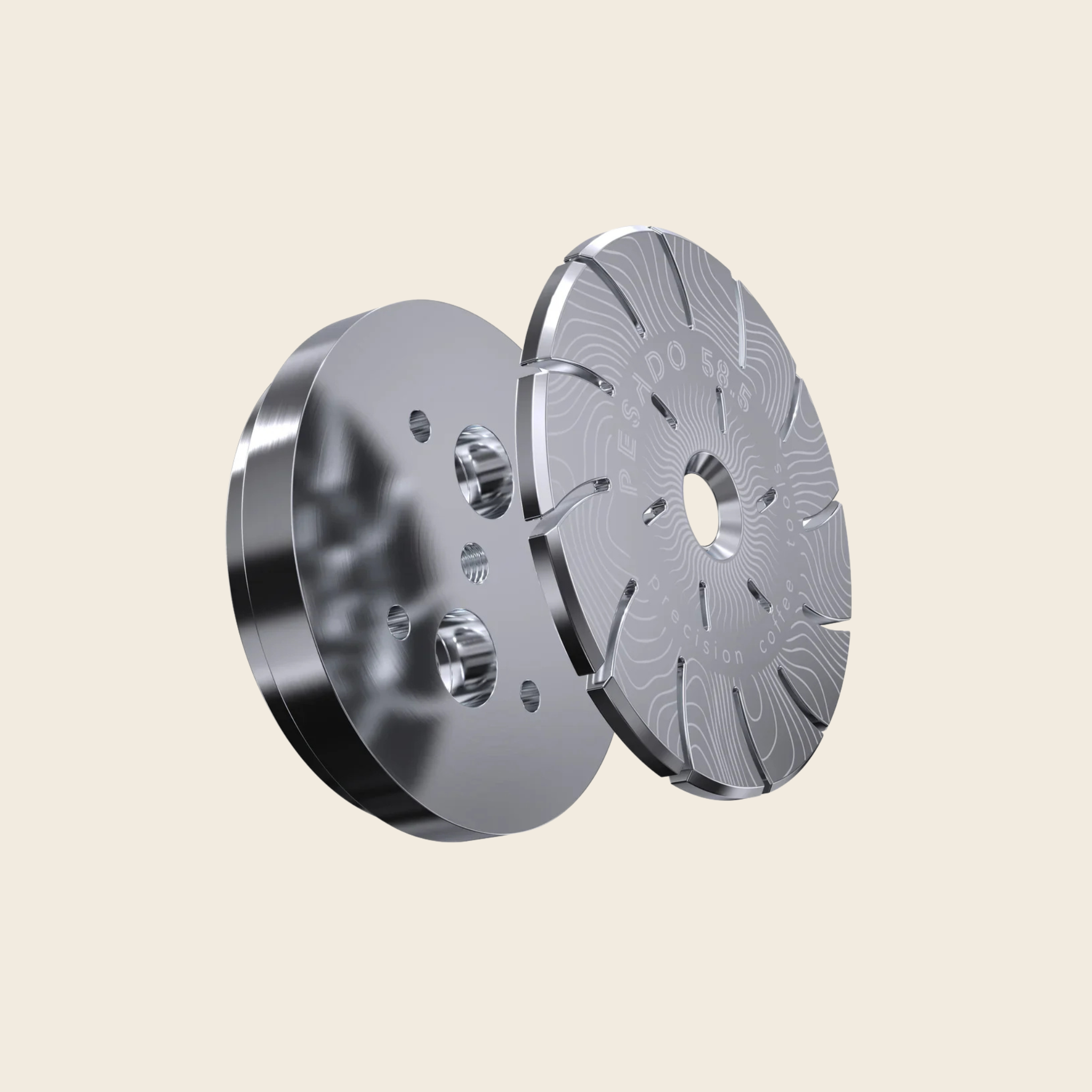

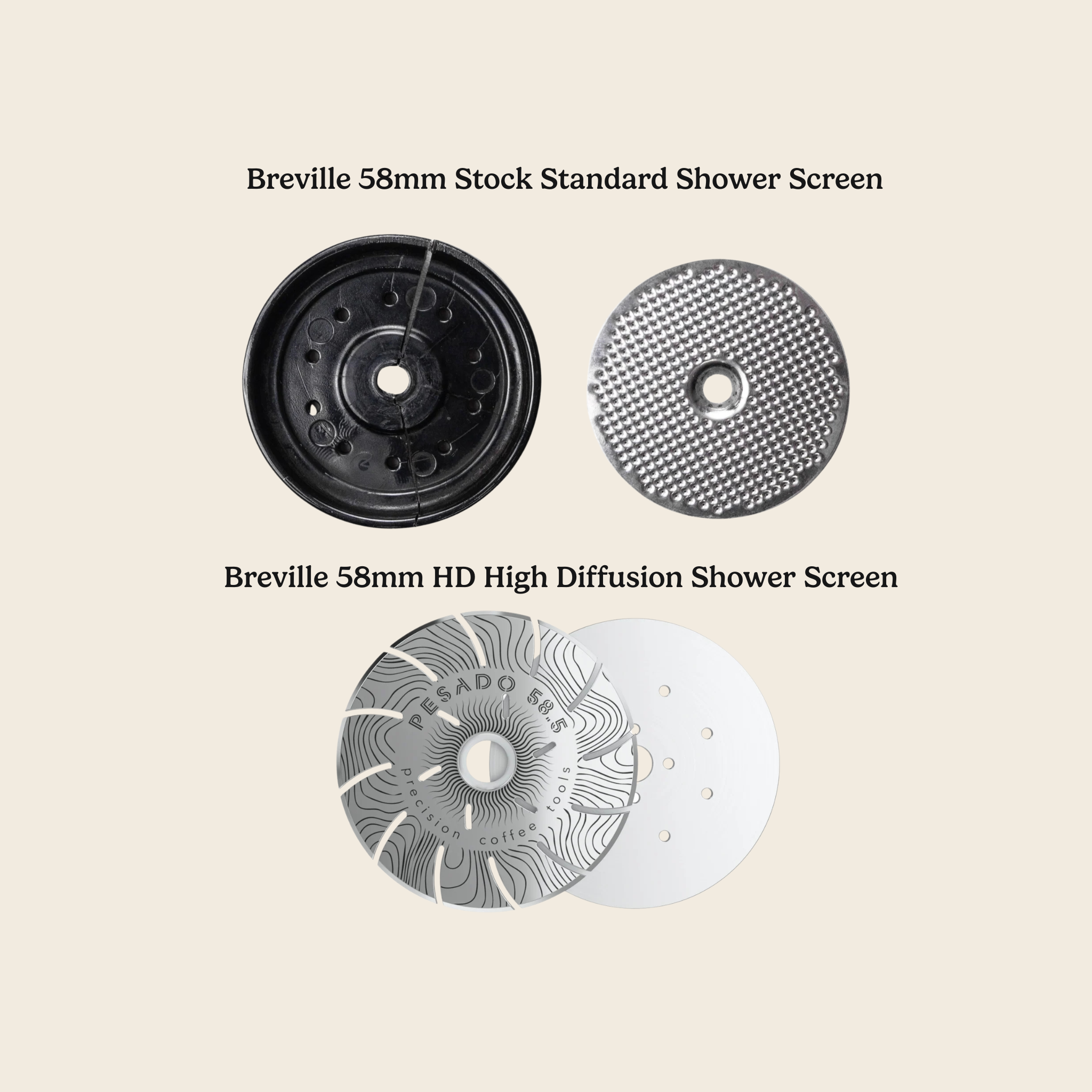

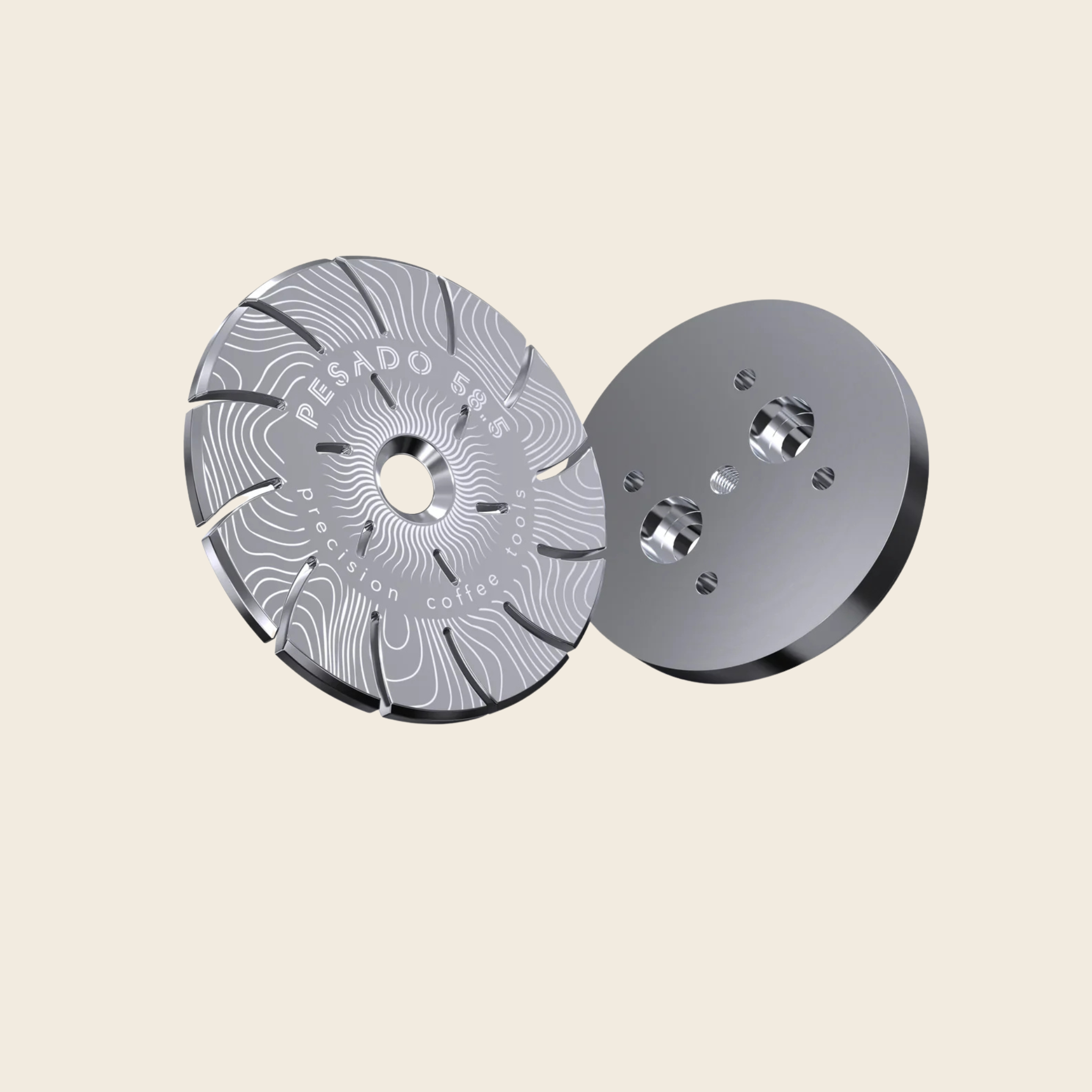

Have a Breville 58mm machine (Dual Boiler, Oracle, Oracle Touch)? You need the 58mm 58MV-HD set instead - it also includes a stainless steel diffusion plate.

What does the Pesado HD shower screen actually do?

The Pesado HD replaces the stock mesh shower screen with an 18-channel precision design. Instead of water flowing through a mesh unpredictably, the channels direct water to specific zones across the full puck surface - including the outer edge of the basket that the stock screen doesn't reach. The result is more even extraction, less channelling, and shots that are easier to dial in consistently.

Which Breville 54mm machines does this fit?

All Breville 54mm grouphead machines: Bambino, Bambino Plus, Barista Express, Barista Express Impress, Barista Pro, Barista Touch, Barista Touch Impress, Duo-Temp Pro, The Infuser, and equivalent Sage models. Not compatible with 58mm Breville machines - those need the separate 58mm BR58HD set.

Can I use this with a single shot basket?

No - the 54HD works with double baskets only. If you primarily use a single shot basket, this upgrade isn't suitable for your setup.

What's included in the box?

One 54mm HD High Diffusion Shower Screen and one 0.2mm contact mesh with pin. You use your existing shower screen bolt to install - no new hardware needed.

Will I need to re-dial my grind after installing?

Yes - most people need to adjust slightly after fitting. The improved water distribution changes how the puck extracts. Expect a session or two to dial back in. Most people find they can go slightly finer on their grind and still hit their target extraction time.

How do I clean it?

Flush the machine with water after each session. Once a week unscrew the screen and rinse both the screen and contact mesh under running water. Keeping the channels clear ensures consistent flow - don't let grounds build up.
